Description

Model name	500CA

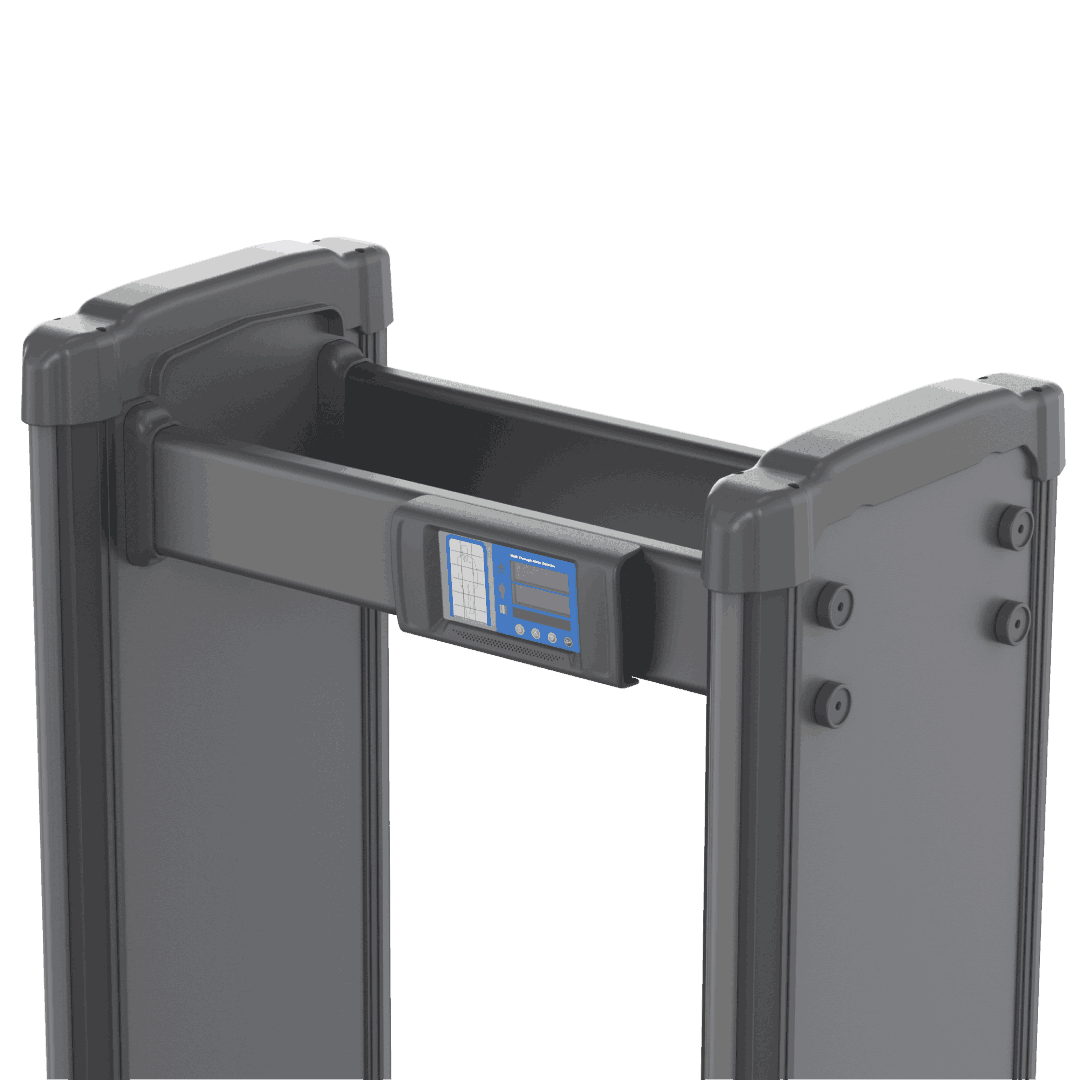

Display	Digital control box 7 inch
Detection mode	Automatic/ Infrared detection mode (4 options)
Maximum detection distance	20 – 2000mm (vertical)
Throughput	60 detection per min on the average.
Sensitivity level	0-255
Detection zone	Adjustable (Up to 93 zone)
Smallest metal objects detected	Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply	AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
Operating current	0.8A
Operating power	12W
Operating time	24/7 operation capability
Detection sound alert	16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
Detection visual indicator	2 sets of LEDs (red) evenly distributed on left and right door panels
Detected contrabands	Ferrous and non-ferrous metal weapons
Enclosure material	Flame retardant ABS polymer, medium density fiberboard, PVC
Operating frequency	0-99
Operating temperature	-20 to 65 C
Packaging dimensions(LWH)	2290730200mm.

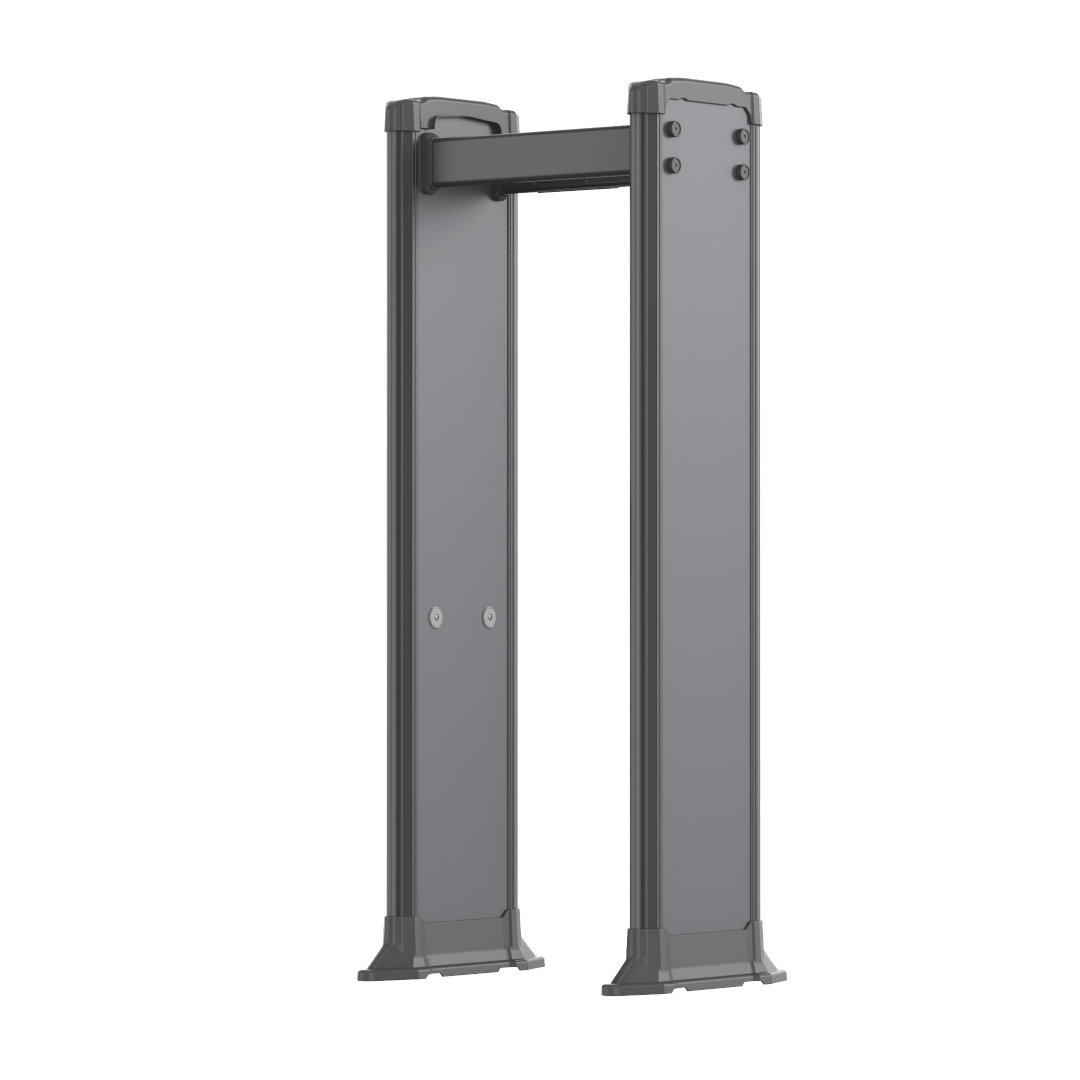

The Zhonganxie 500CA is a high-performance walk-through metal detector designed for superior security screening in high-traffic facilities. The 500CA ensures exceptional sensitivity, reliability, and operational stability. Its sophisticated design is tailored for airports, government buildings, transit hubs, and public venues, providing a seamless, non-invasive screening experience that maintains high throughput while identifying potential threats with pinpoint accuracy.

Key technical features

Advanced environmental monitoring: Equipped with a real-time environmental data display that guarantees high performance and exceptional detection stability across diverse conditions.
Intelligent parameter configuration: Features pre-set parameters that allow operators to adjust for the weight, volume, size, and location of metallic objects, effectively filtering out common personal items like keys, jewelry, and belt buckles to minimize false alarms.
Centralized network connectivity: Supports advanced networking, enabling security teams to manage and monitor multiple 500CA units from a single, centralized PC interface.
Health and safety compliance: Complies with rigorous EMC electromagnetic radiation standards and utilizes low magnetic field technology. This ensures the system is completely harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as film and digital storage media.
Intuitive operator interface: Includes dual LED light bars, adjustable volume/tone settings, password protection, and independent sensitivity levels for each detection zone to ensure comprehensive security control.
Reliable specifications: Operates within a wide temperature range (-20°C to +65°C) with low power consumption (12W), making it highly efficient for continuous daily operation.

How to use the walk-through metal detector 500CA

For consistent and reliable security, it is vital for staff to understand how to use walk through metal detector hardware correctly.

Preparation: Ensure the detector is installed on a flat, stable surface with at least 100 cm of metal-free clearance on the sides.
Power-on: Connect the unit to an AC power source (100V-240V). The multi-point power-on interface will perform an automatic self-test.
Screening: Guide passengers through the passage. The system’s LED display and light bars will immediately alert operators if a target object is detected.
Adjustment: Use the digital control interface to fine-tune the security level or sensitivity based on the specific screening scenario required for your facility.

Certifications

Zhonganxie maintains an unwavering commitment to international quality and safety benchmarks. The 500CA walk-through metal detector is manufactured in full compliance with global standards, holding both CE and FCC certifications. These ensure that our security systems provide superior electromagnetic compatibility and the operational reliability required for professional-grade security deployments.
