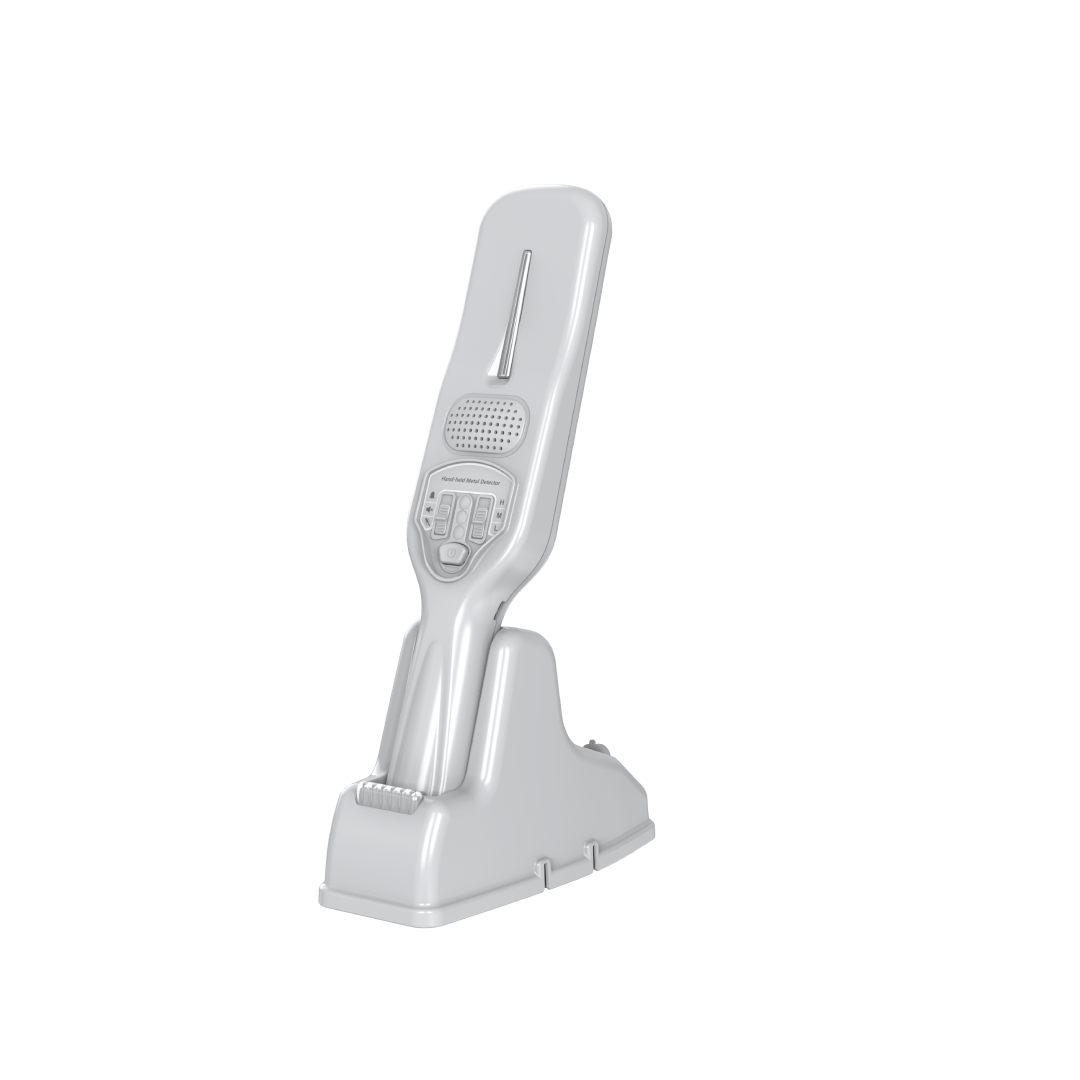

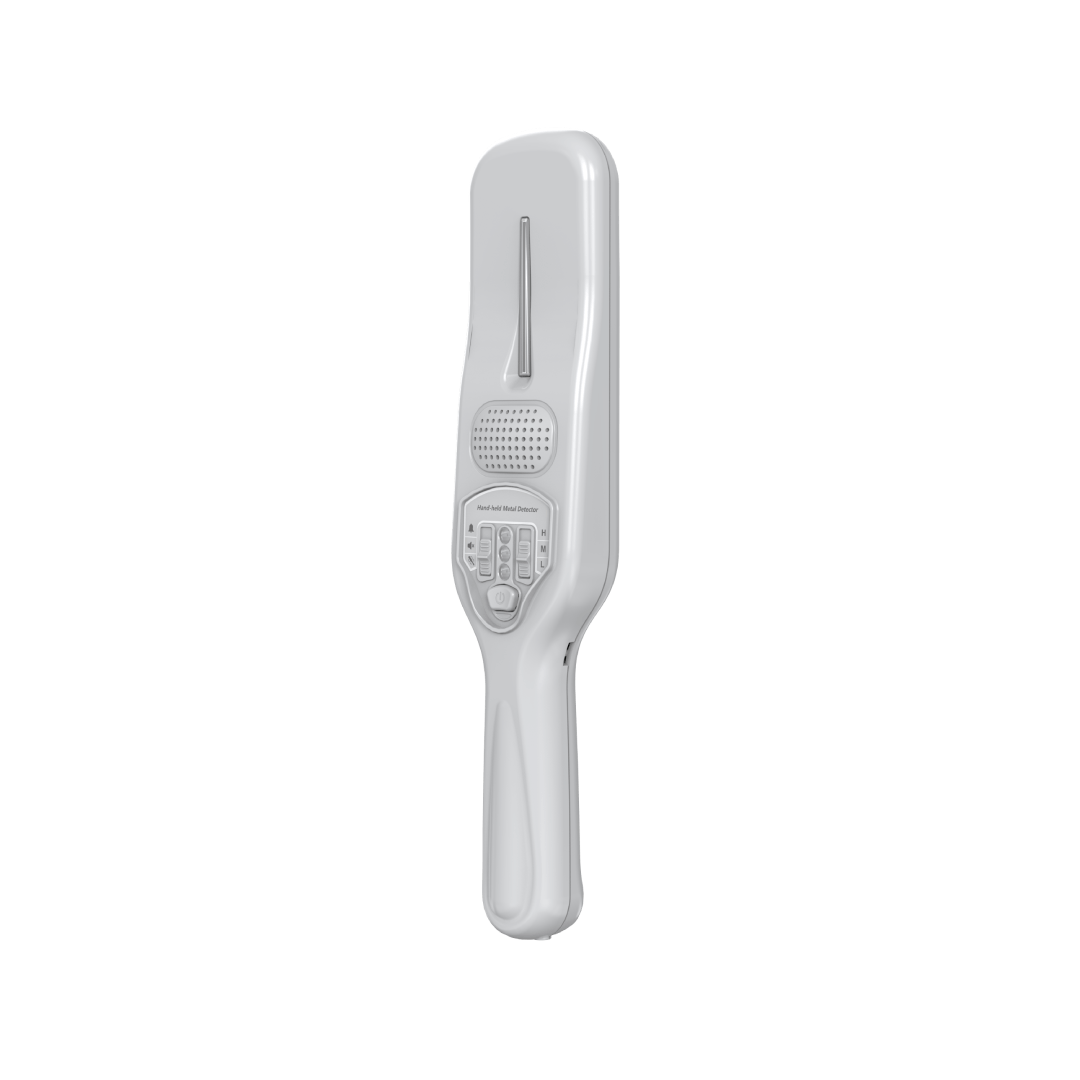

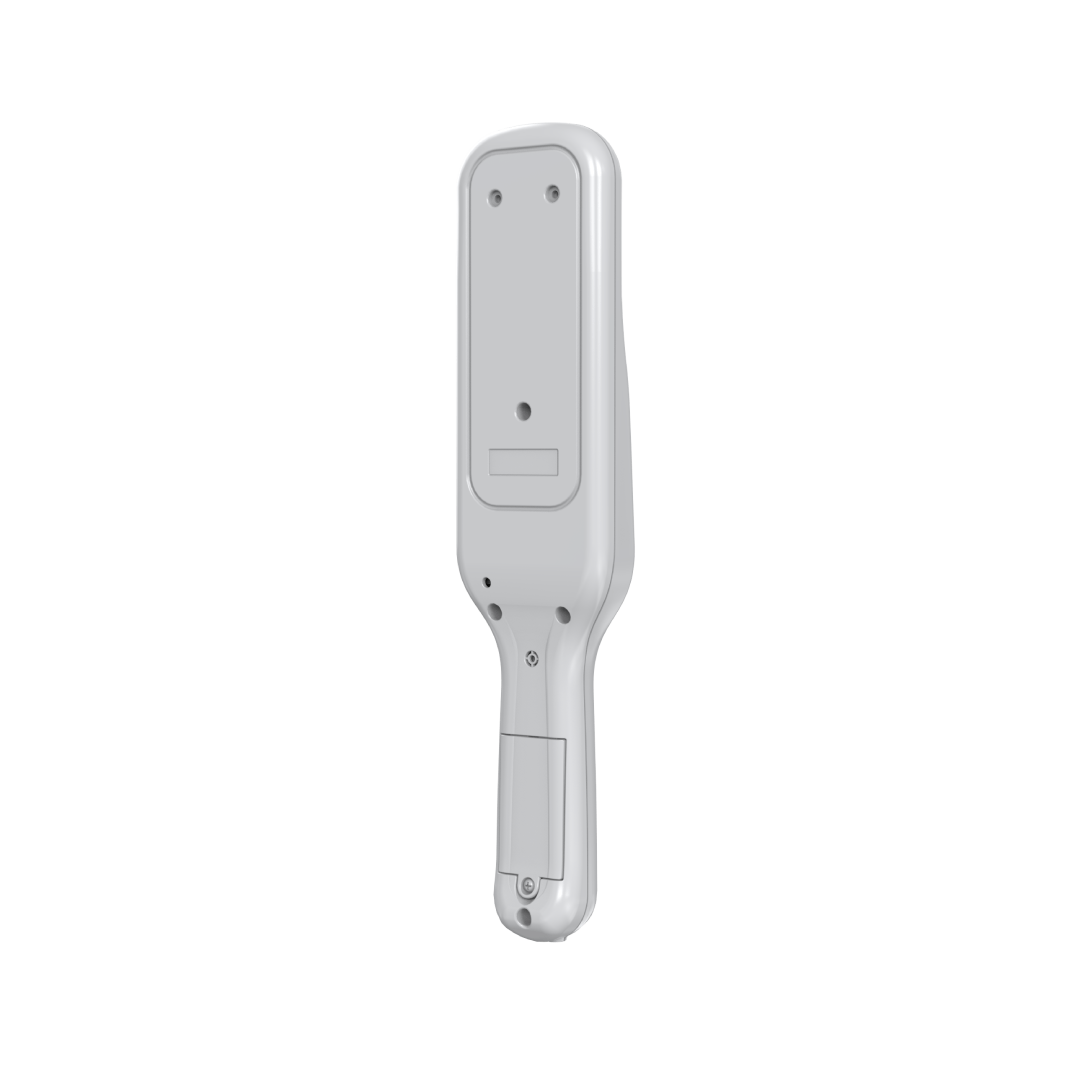

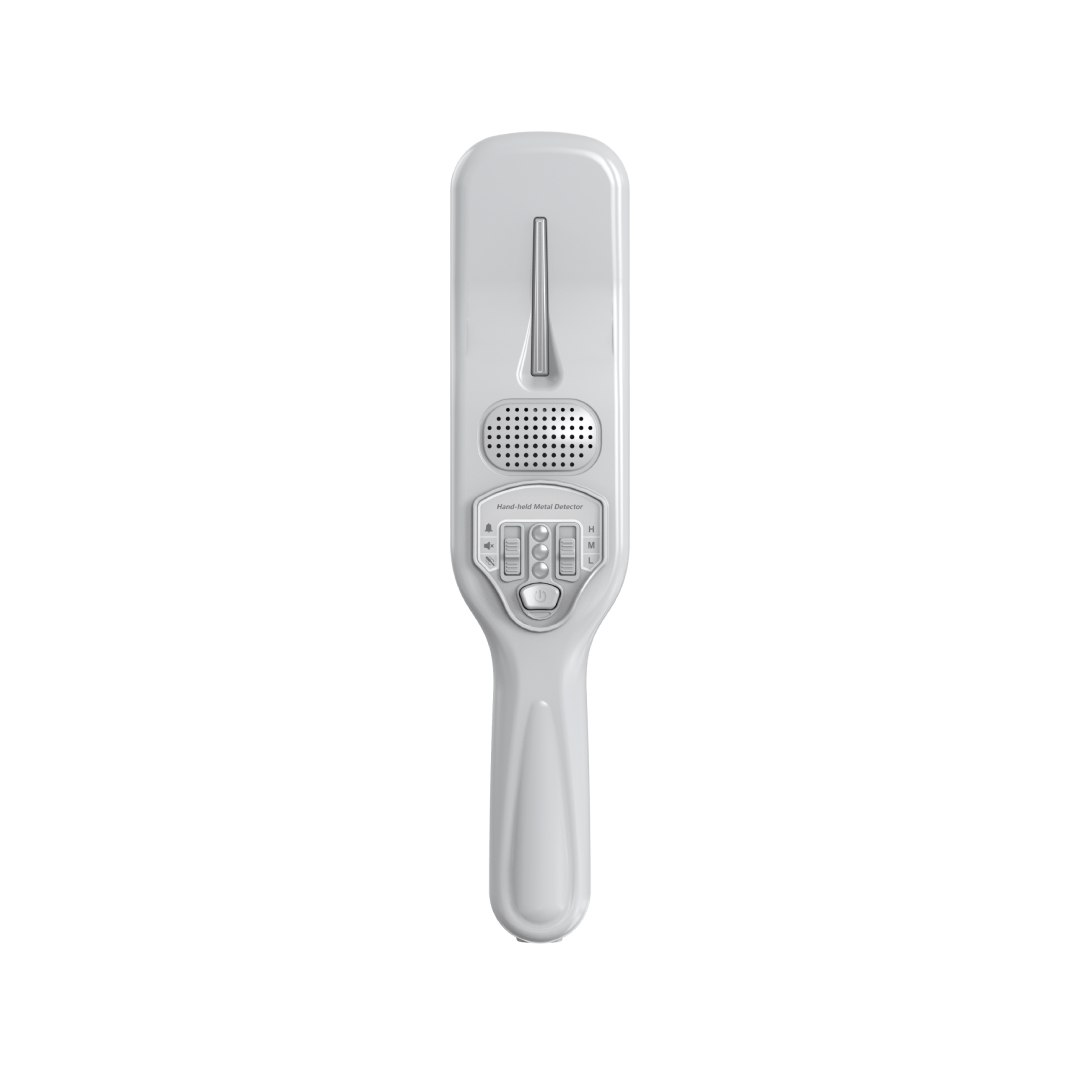

Handheld 620S MAX

Model: 620S Max

Price: Contact us for the most accurate price.

Place: Ports, courts, prisons, conference halls, public buildings, stadiums, factories, hotels, restaurants, entertainment venues, theme parks and other necessary public places for security purposes.

Supply ability: Daily output 200-300pcs

Dimension:

  • External size (H*W*D): 415*80*60mm.
  • Packaging size (H*W*D): 530*270*430mm.

Weight: Net weight 1 kg, Gross weight 1,6kg.

Leadtime: 2-20 working days after receiving payment. (This timeframe may vary depending on your location and order quantity.)

Customs: Logo – brand, dimension, coils, lights, battery.

The handheld metal detector 620S Max is a sleek, ultra-compact, and highly agile security screening device engineered for tactical body searches in space-constrained and high-traffic environments. The 620 represents its core engineering series, emphasizing its specialized small, compact form factor. This lightweight design guarantees exceptional maneuverability and operational comfort, reducing operator fatigue during prolonged use at busy security checkpoints, public events, or school entrances.

Distinguishing its scanning performance, designation signifies the integration of an advanced, multi-color LED indicator light bar. Combining high-performance sensitivity, a small architectural profile, and dual tactile-visual feedback, the 620S Max stands as a premier tool for professional, efficient security screening.

Description

Model name 620S Max
Display Yes
Detection mode 2 options detection mode
Maximum detection distance 30 – 160mm (vertical)
Power 2pcs AA batteries
Smallest metal objects detected Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply AC 1.2V to 1.5V
Operating power Maximum 270 mW
Standby current <5mA
Operating time 24/7 operation capability
Detection sound alert 2 levels of volume
Detection visual indicator 1 sets of LEDs (red) or buzzer
Detected contrabands Ferrous and non-ferrous metal weapons
Enclosure material Flame retardant ABS polymer, medium density fiberboard, PVC
Operating temperature -25 to 60 C

The  handheld 620S MAX is a premium, high-sensitivity handheld metal detector designed to deliver rapid and pinpoint security screening in demanding high-traffic environments. Combining a compact, ultra-slim ergonomic structure with real-time signal strength LED indicators, the 620S MAX provides security personnel with an exceptionally precise tool. Ideal for airports, events, educational institutions, and corporate facilities, it ensures seamless and reliable detection of concealed metallic threats without requiring complex calibration.

Key technical features

  • Real-time LED signal display: Equipped with an advanced LED indicator bar that visually displays metal strength levels in real-time, allowing operators to quickly evaluate the size and proximity of detected objects.
  • Zero-calibration convenience: Engineered for ultimate ease of use, the 620S MAX automatically adjusts to its environment, requiring no manual tuning or calibration before operation.
  • Compact and ergonomic design: Features a streamlined profile measuring 360 mm (L)*80 mm (W)*41 mm (H), minimizing operator fatigue during extended screening shifts.
  • Energy-efficient operation: Low-power consumption design supports up to 40 hours of continuous use on a single set of AA batteries, complemented by independent power status indicators and an automatic low-battery continuous alarm.
  • Flexible multi-mode alert switching: Convenient toggle switches allow security teams to easily alternate between Sound mode and Vibration mode depending on noise levels and operational requirements.

How to use the 620S Max

Operating the 620S MAX is simple and intuitive. When training personnel on how to use hand held metal detector units effectively, follow these key steps:

  1. Power activation: Turn on the device using the power switch and check the independent power status indicators to verify battery levels.
  2. Mode selection: Select your preferred alert setting-choose Sound mode (Buzzer, red LED, and metal indicator LED) for standard environments or Vibration mode (Vibration, red LED, and metal indicator LED) for quiet or high-noise checkpoints.
  3. Scanning motion: Sweep the face of the detector parallel to the person’s body at a distance of 2-5 cm in a smooth, continuous movement.
  4. Target location: When metal is detected, observe the real-time LED indicator bar and listen/feel for alerts to pinpoint the exact location and relative size of the object.

Certifications

Zhonganxie maintains an unwavering commitment to international quality, safety, and compliance standards. The 620S MAX handheld metal detector fully satisfies essential global benchmarks, holding both CE and FCC certifications. This ensures superior electromagnetic compatibility, reliable device stability, and total safety for users and members of the public.

After-sales service system

Our dedication to client success extends well beyond the point of purchase. Zhonganxie provides a comprehensive post-sale support framework:

  • Dedicated customer care: We offer proactive technical assistance, fast troubleshooting, and ongoing product maintenance support to keep your screening operations running smoothly.
  • Strategic target market research: To empower our distribution partners, we provide exclusive target market research and security industry trend reports, helping you identify local demands and strategically expand your business.

Shipping

We offer flexible, safe, and efficient global shipping channels tailored to your project timeline and order volume:

  • Sea freight: The most cost-effective solution for bulk project orders and wholesale distribution.
  • Air freight: Ideal for time-critical, high-priority security deployments.
  • Land transport: Reliable, streamlined door-to-door regional transit.
