Side Panel Digital Control Box 518SA

Model: 518SA

Zone: 1 to 93 zone

Price: Contact us for the most accurate price.

Place: Ports, courts, prisons, conference halls, public buildings, stadiums, factories, hotels, restaurants, entertainment venues, theme parks and other necessary public places for security purposes.

Technical: Self-diagnoses, zone sensitivity adjustment, real-time data view.

Supply ability: Daily output 200-300pcs

Dimension:

  • External size (H*W*D): 2204*870*630mm.
  • Passage size (H*W*D): 2013*720*630mm (The width of passage can be custom from 700 – 1500mm).

Weight: Net weight 44kg, Gross weight 52kg.

Leadtime: 2-20 working days after receiving payment. (This timeframe may vary depending on your location and order quantity.)

Customs: Logo – brand, zone, dimension, coils, lights, battery management system.

The walk-through metal detector 518SA is a professional, high-capacity security gate designed to deliver precise multi-zone threat detection while providing enhanced operational convenience. The panel width is 518mm, offering an expansive and highly stable structural footprint that accommodates high volumes of passenger traffic smoothly. Which shifts the main control interface down from the overhead crossbeam to the side of the panel, allowing operators to easily monitor data and adjust settings at eye level. The integration of a reliable digital control box featuring a high-visibility LED display and tactile physical buttons for straightforward, secure programming. The 518SA is an ideal solution for airports, government offices, and major public venues seeking a wide-body gate with effortlessly accessible controls.

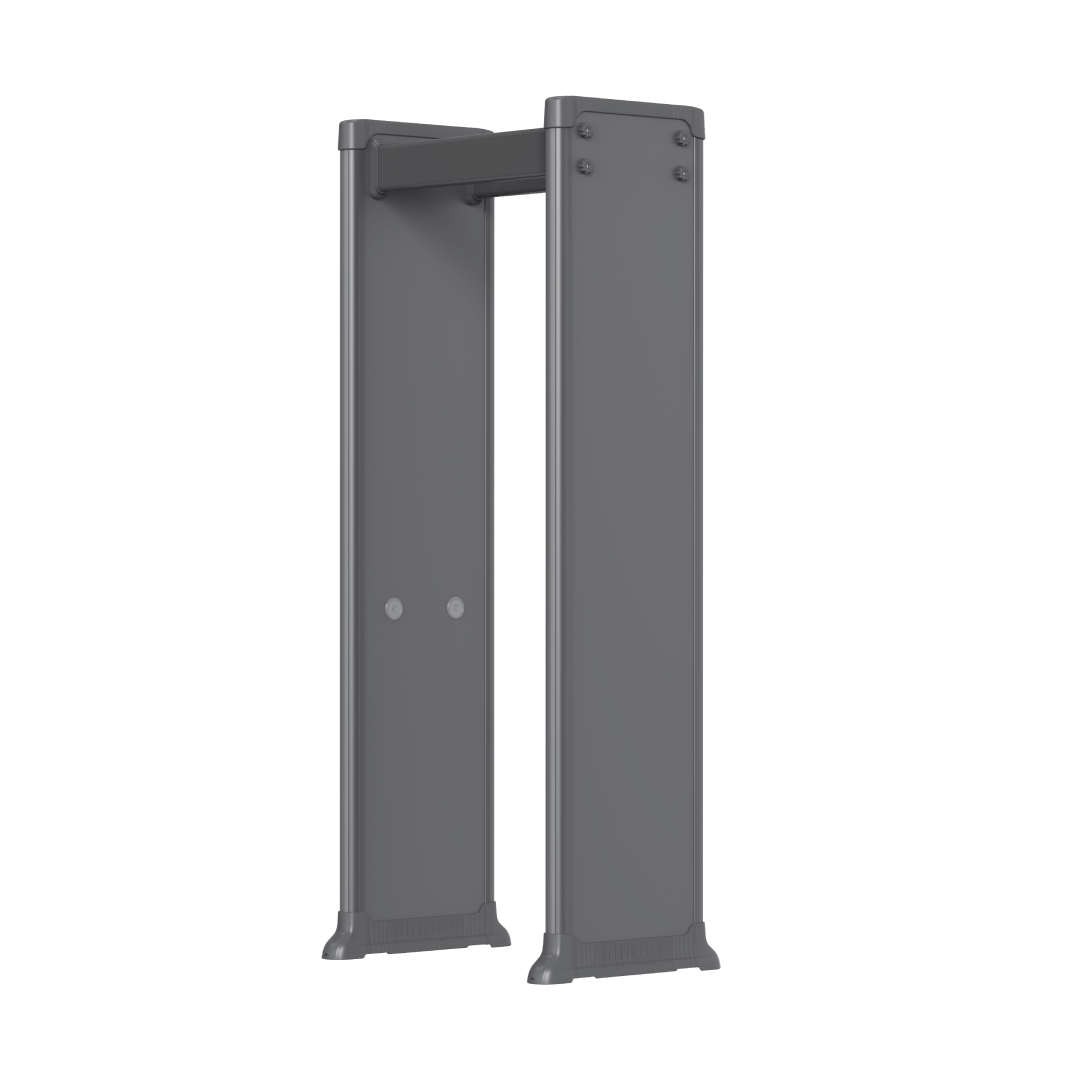

walk through metal detector 518sa
front of walk through metal detector 518sa
right of walk through metal detector 518sa

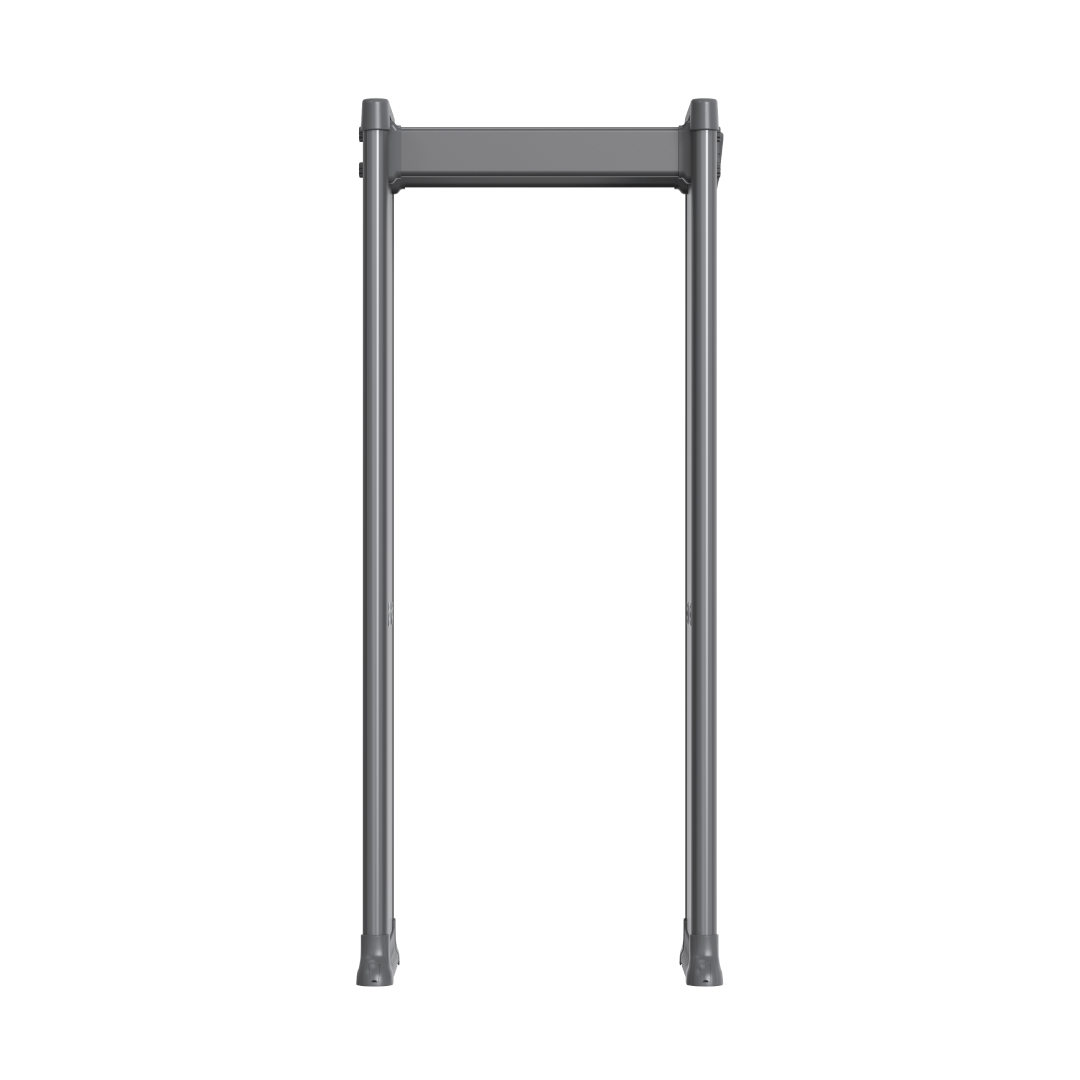

back of walk through metal detector 518sa

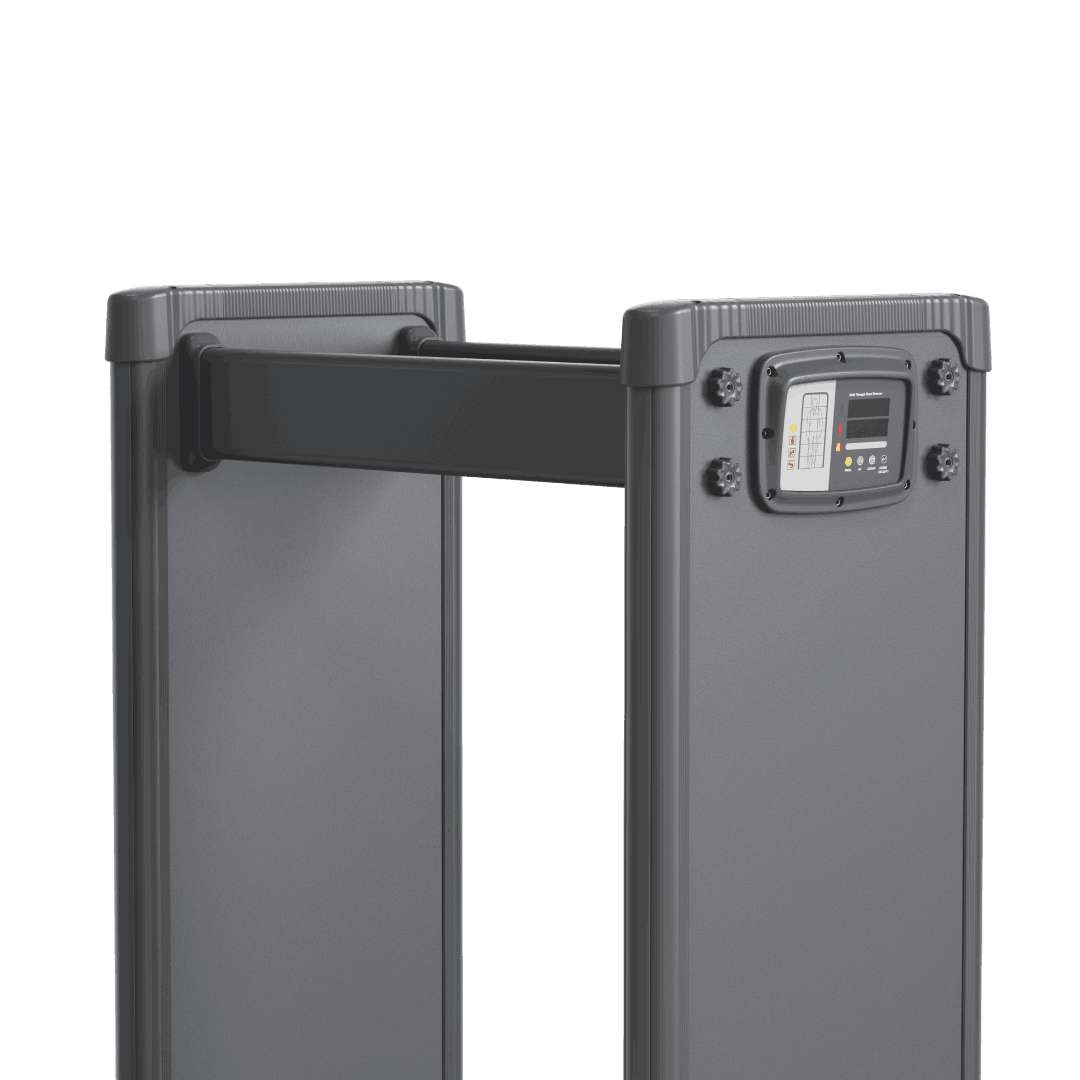

top of walk through metal detector 518sa
screen of walk through metal detector 518sa

Description

Model name 518SA
Display Digital control box 7 inch
Detection mode Automatic/ Infrared detection mode (4 options)
Maximum detection distance 20 – 2000mm (vertical)
Throughput 60 detection per min on the average.
Sensitivity level 0-255
Detection zone Adjustable (Up to 93 zone)
Smallest metal objects detected Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
Operating current 0.8A
Operating power 12W
Operating time 24/7 operation capability
Detection sound alert 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
Detection visual indicator 2 sets of LEDs (red) evenly distributed on left and right door panels
Detected contrabands Ferrous and non-ferrous metal weapons
Enclosure material Flame retardant ABS polymer, medium density fiberboard, PVC
Operating frequency 0-99
Operating temperature -20 to 65 C
Packaging dimensions(L*W*H) 2290*730*200mm.

The Zhonganxie 518SA is a high-performance walk-through metal detector engineered to deliver superior security screening precision. Designed for high-traffic environments, this system integrates advanced electromagnetic sensor technology with an intuitive digital control interface. It provides consistent stability, high sensitivity, and an efficient screening process, making it an essential security solution for public venues, corporate facilities, and event checkpoints that require reliable, non-invasive threat detection.

Key technical features

  • Precision environmental monitoring: Equipped with a real-time environmental data display that ensures high performance and exceptional detection stability.
  • Smart parameter customization: Pre-set parameters allow operators to adjust for the weight, volume, size, and location of metallic objects, significantly reducing false alarms from harmless personal items like jewelry and keys.
  • Advanced networking: Supports seamless network connectivity, enabling the centralized management and monitoring of multiple detector units from a single PC.
  • Health and safety compliance: Complies with rigorous EMC electromagnetic radiation standards and utilizes low magnetic field technology, ensuring the system is safe for pacemaker wearers, pregnant women, and magnetically sensitive media.
  • Intuitive operation: Features a clear LED display, dual LED light bars, password protection, and independent sensitivity levels for every detection zone to provide comprehensive security oversight.
  • Robust specifications: Operates efficiently within a wide temperature range (-20°C to +65°C) and features low power consumption (12W), making it adaptable to diverse environments.

How to use the walk-through metal detector 518SA

For optimal security results, it is vital for personnel to understand how to use walk-through metal detector equipment.

  1. Setup: Ensure the device is placed in a flat area with a minimum metal-free zone of 100cm (width)*200cm (length).
  2. Initialization: Power on the unit and use the multi-point interface to perform a system self-check.
  3. Configuration: Utilize the LED display to set the appropriate sensitivity and security level for the specific environment or scenario.
  4. Screening: Guide passengers through the passage. Use the independent zone indicators and LED display to quickly identify the location of any detected metallic objects.

Certifications

Zhonganxie maintains a strict commitment to international quality and safety benchmarks. The 518SA walk-through metal detector is fully compliant with global security regulations, holding essential CE and FCC certifications. These ensure our systems provide the electromagnetic compatibility and operational reliability required for professional-grade security deployments.

After-sales service system

We believe in building long-term success with our partners through a comprehensive service ecosystem:

  • Dedicated customer care: We provide proactive technical assistance and responsive support to ensure your security equipment remains at peak operational performance.
  • Target market research: To support our partners’ strategic planning, we provide exclusive target market research and regional trend insights, helping you identify emerging security demands and effectively position your business in the market.

Shipping

Zhonganxie offers flexible, high-efficiency logistics solutions to meet your project requirements. We support multiple shipping methods, including sea freight for economical bulk orders, air freight for time-sensitive installations, and land transport for reliable, door-to-door regional distribution.
