WaterProof Cross-beam Digital Control Box 518WA

Model: 518WA

Zone: 1 to 93 zone

Price: Contact us for the most accurate price.

Place: Ports, courts, prisons, conference halls, public buildings, stadiums, factories, hotels, restaurants, entertainment venues, theme parks and other necessary public places for security purposes.

Technical: Self-diagnoses, zone sensitivity adjustment, real-time data view.

Supply ability: Daily output 200-300pcs

Dimension:

  • External size (H*W*D): 2204*870*630mm.
  • Passage size (H*W*D): 2010*720*630mm (The width of passage can be custom from 700 – 1500mm).

Weight: Net weight 45kg, Gross weight 53kg.

Leadtime: 2-20 working days after receiving payment. (This timeframe may vary depending on your location and order quantity.)

Customs: Logo – brand, zone, dimension, coils, lights, battery management system.

The walk-through metal detector 518WA is a heavy-duty, high-performance security gate designed to deliver precise multi-zone threat detection in demanding environments. The “518” designates its robust 518mm panel width, providing an expansive, stable, and highly visible structure for high-traffic checkpoints. Positioned overhead on the top crossbeam (main frame setup), the integration of a digital control box featuring a high-visibility LED screen and tactile physical buttons for straightforward, dependable system configuration. Combining weather-resistant durability with a solid structural footprint, the 518WA is an ideal solution for outdoor public venues, transit hubs, and high-security industrial areas.

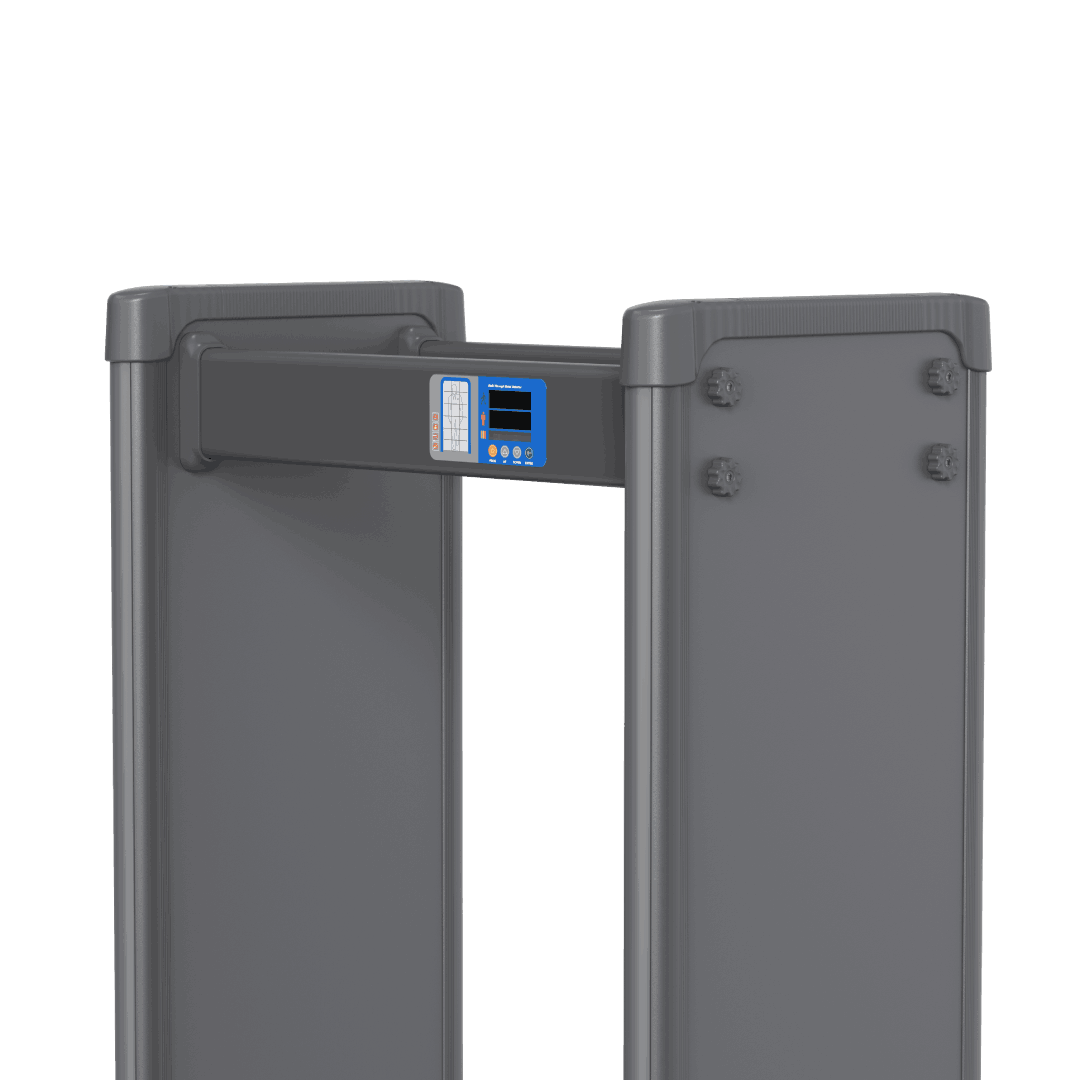

right of waterproof cross beam digital control box 518wa

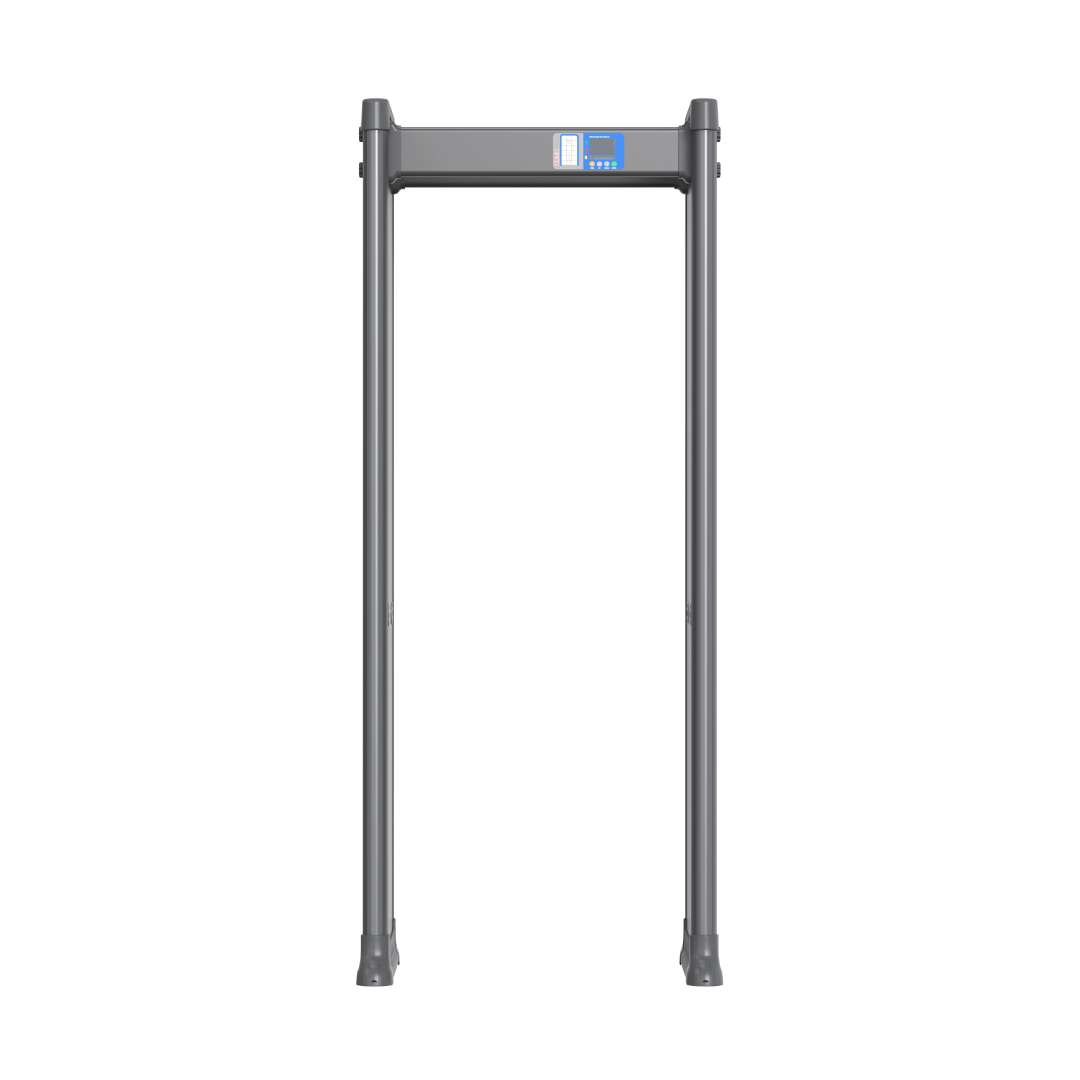

front of walk through metal detector 518wa
right of walk through metal detector 518wa

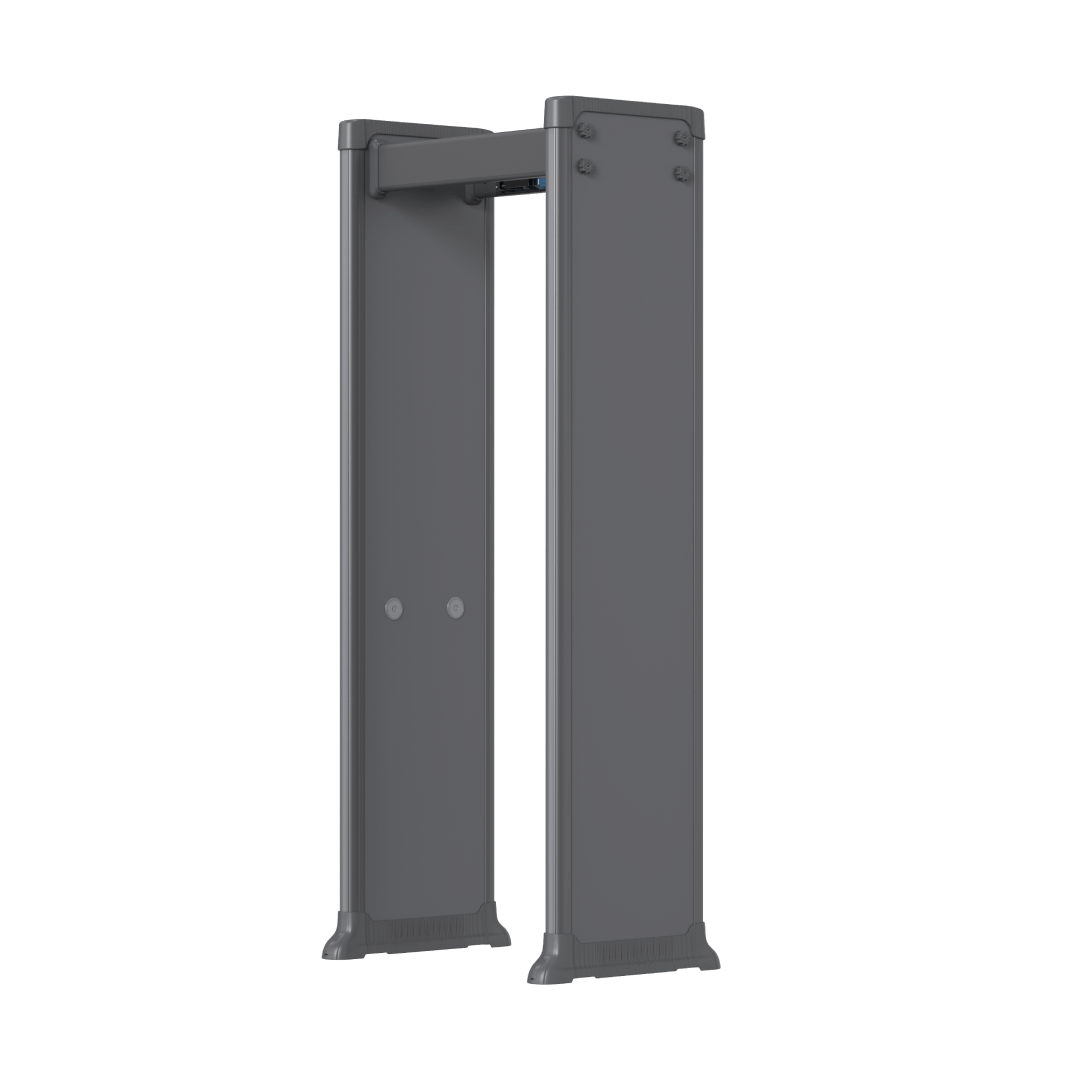

back of walk through metal detector 518wa
top of walk through metal detector 518wa
screen of walk through metal detector 518wa

Description

Model name 518WA
Display Digital control box 7 inch
Detection mode Automatic/ Infrared detection mode (4 options)
Maximum detection distance 20 – 2000mm (vertical)
Throughput 60 detection per min on the average.
Sensitivity level 0-255
Detection zone Adjustable (Up to 93 zone)
Smallest metal objects detected Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
Operating current 0.8A
Operating power 12W
Operating time 24/7 operation capability
Detection sound alert 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
Detection visual indicator 2 sets of LEDs (red) evenly distributed on left and right door panels
Detected contrabands Ferrous and non-ferrous metal weapons
Enclosure material Flame retardant ABS polymer, medium density fiberboard, PVC
Operating frequency 0-99
Operating temperature -20 to 65 C
Waterproof IP65
Packaging dimensions(L*W*H) 2290*745*190mm.

The ProScan Global 518WA is a top-tier, waterproof walk-through metal detector designed for both indoor and outdoor high-security environments. Featuring an IP65-rated design, this system is engineered to withstand challenging weather conditions while maintaining exceptional detection accuracy. Combining high-sensitivity sensors with advanced electromagnetic technology, the 518WA ensures consistent performance at transit hubs, stadiums, and outdoor event checkpoints, providing security teams with a reliable, non-invasive, and durable screening solution.

Key technical features

  • IP65 waterproof rating: Specifically built for versatility, the “WA” series supports IP65 waterproof standards, making it highly reliable for outdoor deployment and areas exposed to moisture.
  • Environmental data monitoring: Integrated with real-time environmental data displays, the system offers high performance, superior sensitivity, and excellent operational stability.
  • Smart anti-false alarm technology: Pre-set parameters allow security operators to adjust for the weight, volume, size, and position of metal objects, effectively eliminating false alarms caused by everyday items like keys, jewelry, and belt buckles.
  • Networking and centralized control: Supports advanced network connectivity, enabling the management of multiple detection devices through a single, centralized PC interface.
  • Safety first: Complies with rigorous EMC electromagnetic radiation standards and uses low magnetic field technology, ensuring the system is safe for pacemaker users, pregnant women, and magnetically sensitive media.
  • Robust specifications: Features an operating temperature range of -20°C to +65°C and low power consumption of only 12W, ensuring efficiency in diverse climates.

How to use the walk-through metal detector 518WA

For peak performance and checkpoint efficiency, the 518WA should be utilized within a structured screening flow. It is essential for security staff to be trained on how to use divesting table stations effectively. By guiding passengers to place personal metal items (such as phones or watches) into trays before walking through the detector, your team can maintain high-speed throughput while ensuring that only unauthorized metallic threats are flagged.

Certifications

ProScan maintains a steadfast commitment to global quality and safety standards. The 518WA walk-through metal detector is fully compliant with international security regulations, holding essential CE and FCC certifications. These ensure that our systems provide superior electromagnetic compatibility and reliable performance for your most critical security deployments.

After-sales service system

Our partnership with our clients goes far beyond the initial purchase. Our comprehensive after-sales system ensures your success:

  • Proactive customer care: We offer dedicated technical assistance and professional support to keep your screening operations running smoothly without interruption.
  • Strategic market research: To help our partners thrive, we provide exclusive target market research and regional trend insights, helping you identify security demands and strategically position your business in the competitive landscape.

Shipping

To support rapid and global deployment, ProScan Global provides versatile logistics solutions tailored to your specific project needs. We support multiple shipping methods, including sea freight for economical bulk ordering, air freight for time-sensitive high-priority deployments, and land transport for reliable, efficient regional door-to-door distribution.
