Description
| Model name | 518SWA |
| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Waterproof | IP65 |
| Packaging dimensions(L*W*H) | 2290*730*200mm. |

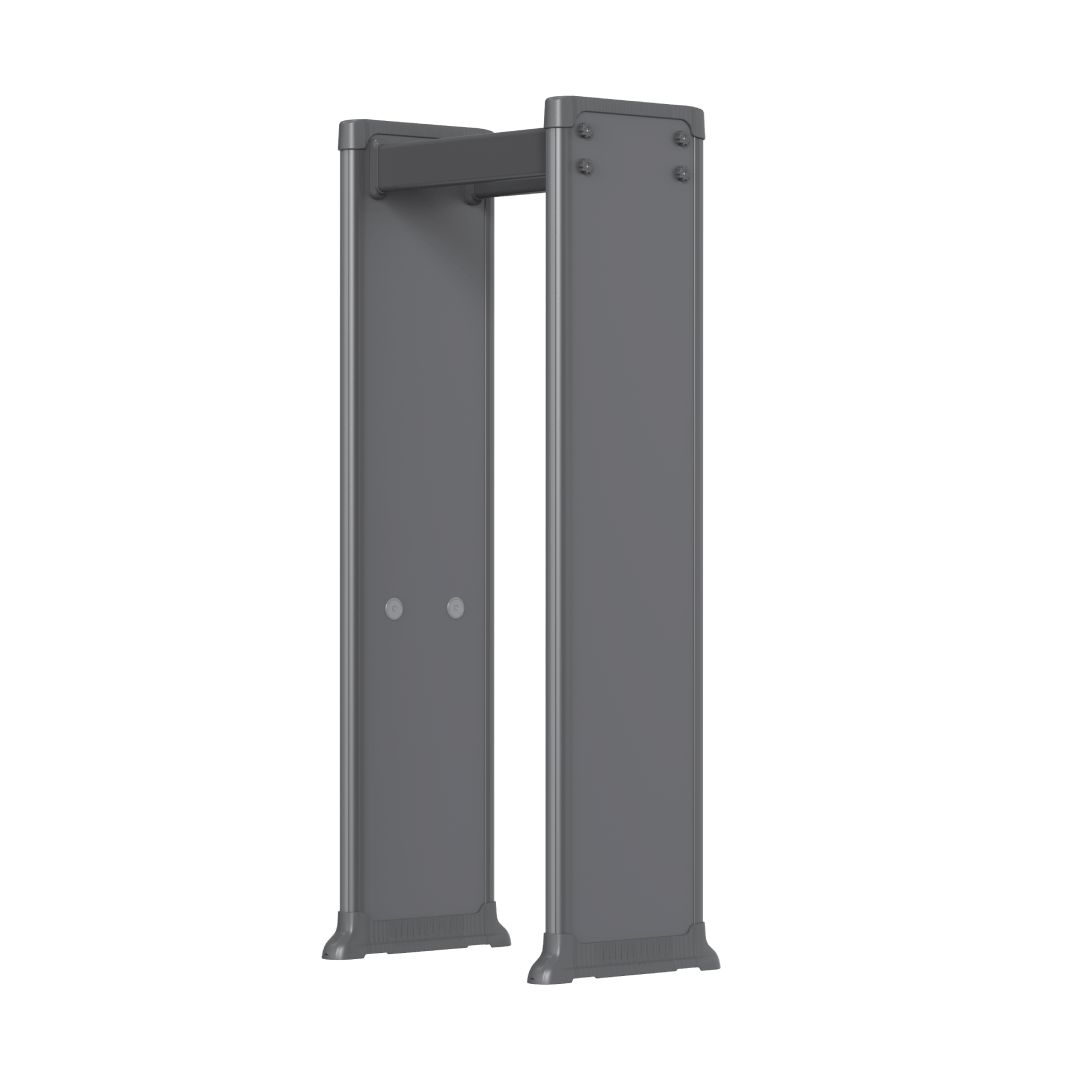

The Zhonganxie 518SWA is a high-performance, IP65-rated waterproof walk-through metal detector designed for demanding indoor and outdoor security checkpoints. Built to thrive in harsh environments, the 518SWA combines rugged durability with advanced electromagnetic detection technology. It provides consistent sensitivity, excellent stability, and reliable threat identification, making it the ideal security solution for stadiums, public transit hubs, and outdoor event venues where weather resistance and precise screening are paramount.
Key technical features
- IP65 waterproof design: Engineered for versatility, the SWA series features robust IP65-rated protection, ensuring uninterrupted performance in humid, rainy, or dusty outdoor environments.
- Smart detection and anti-interference: Equipped with environmental data monitoring and pre-set parameters to adjust for the weight, volume, and size of objects. This effectively eliminates false alarms from personal items like keys, jewelry, and belt buckles.
- Centralized network management: Supports advanced network connectivity, allowing security teams to monitor and manage multiple 518SWA units seamlessly from a single PC.
- Health and safety compliance: Complies with stringent EMC electromagnetic radiation standards and utilizes low magnetic field technology, ensuring the system is safe for pacemaker users, pregnant women, and magnetically sensitive materials like film and digital storage media.
- Adaptive operational specs: Operates efficiently in temperatures ranging from -20°C to +65°C with low power consumption (12W), ensuring reliability in diverse climates and minimizing operational costs.
How to use the walk-through metal detector 518SWA
To maximize throughput and maintain rigorous security, the 518SWA should be integrated into a standardized screening protocol. It is essential for security personnel to be thoroughly trained in how to use walk through metal detector equipment effectively. Ensure the device is installed on a flat, stable surface, properly configured via the LED interface, and that passengers are guided to walk through at a steady pace for optimal detection accuracy.
Certifications
Zhonganxie is dedicated to upholding the highest international quality and safety benchmarks. The 518SWA walk-through metal detector is fully compliant with global security standards, holding both CE and FCC certifications. These accolades confirm that our systems provide the electromagnetic compatibility and operational reliability required for professional-grade security deployments worldwide.
After-sales service system
We believe that our partnership with clients extends far beyond the point of procurement. Our support ecosystem includes:
- Dedicated customer care: We offer proactive technical assistance and responsive service to ensure your screening operations remain flawless and efficient.
- Target market research: To help our business partners stay competitive, we provide exclusive target market research and security industry insights, helping you identify emerging trends and regional demands to strategically optimize your market positioning.
Shipping
Zhonganxie provides versatile, high-efficiency logistics to meet your project’s specific requirements. We support multiple global shipping channels, including:
- Sea freight: The most cost-effective solution for bulk project orders.
- Air freight: Recommended for time-critical, high-priority deployments.
- Land transport: Streamlined door-to-door regional distribution.
