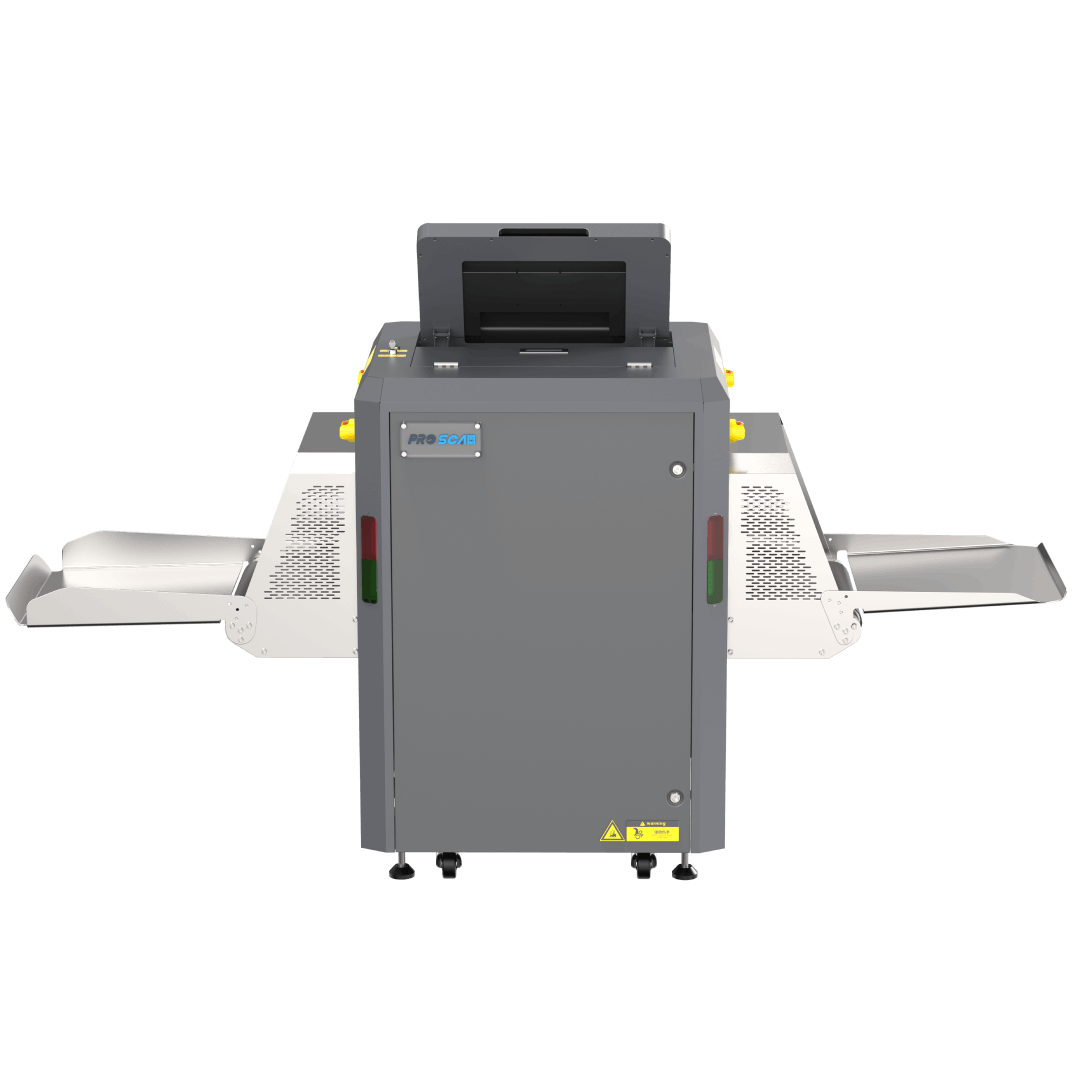

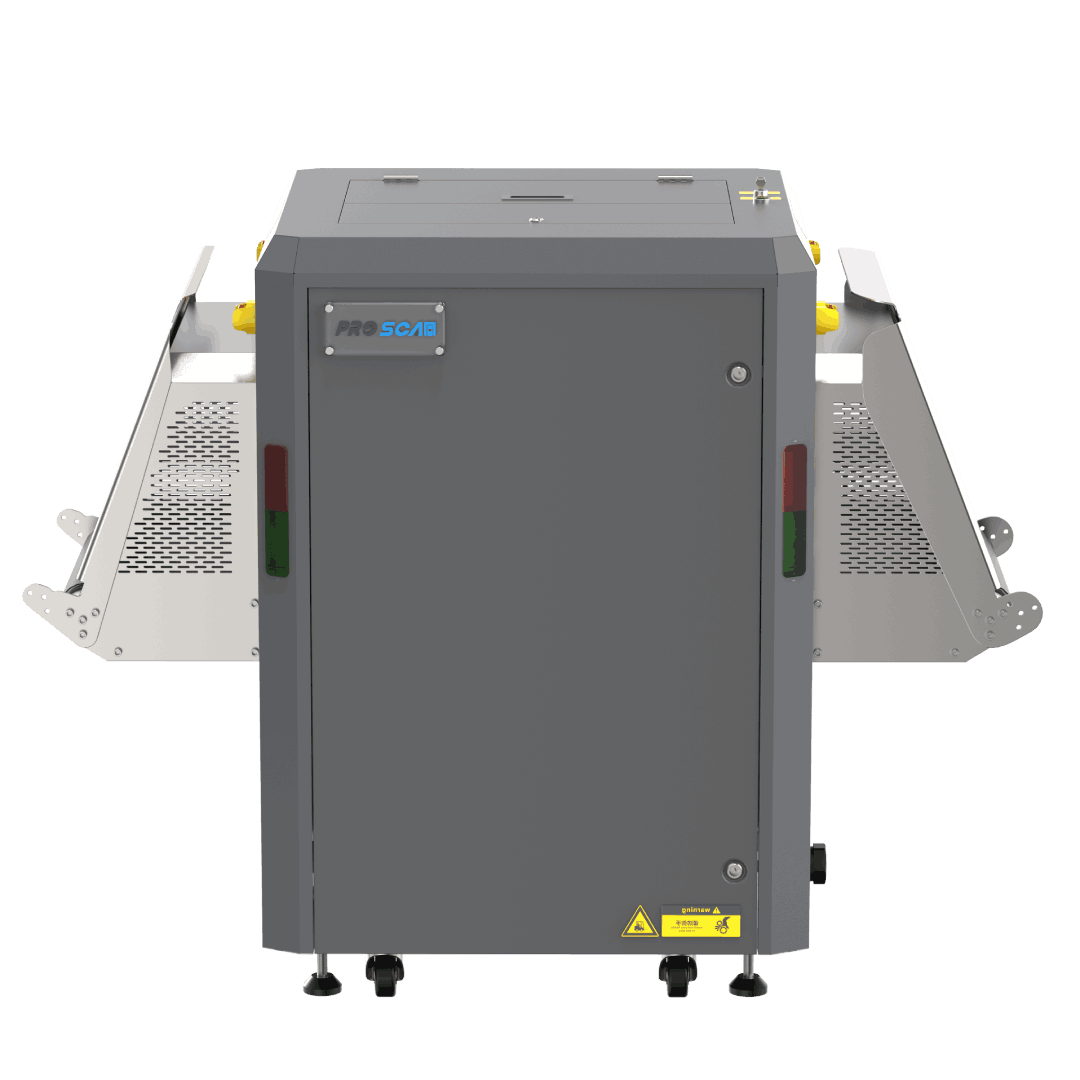

X-ray Security Machine XR3D 5030C (140KW)

Dimensions:

• Channel Size: 500 mm (W) × 300 mm (H);
• Device Size: 1475 mm (L) × 784 mm (W) × 1100 mm (H);
• X-ray Source: 140kV–160kV (0.5mA–1.25mA);
• Penetration: 40 mm steel plate;
• Line Resolution: Awg38 (0.102 mm);
• Spatial Resolution: 1.0 mm (H) × 1.0 mm (V);
• Display: 21.5″ HD (1920×1080);
• Conveyor Speed: 0.22 m/s;
• Conveyor Belt Height: 660 mm;
• Power Consumption: 500 W;
• Power Supply: AC 220V 50Hz;
• Weight: 245 kg;
• Working Temperature: 5°C–40°C;
• Storage Temperature: −20°C–40°C;
• Noise: <55 dB (1 m away from device);
• Sensor Type: 1/2.8″ Progressive Scan CMOS;
• Video Standard: H.265/H.264 MJPEG;
• Maximum Image Size: 1920×1080;
• Storage Duration: ≥30 days.
