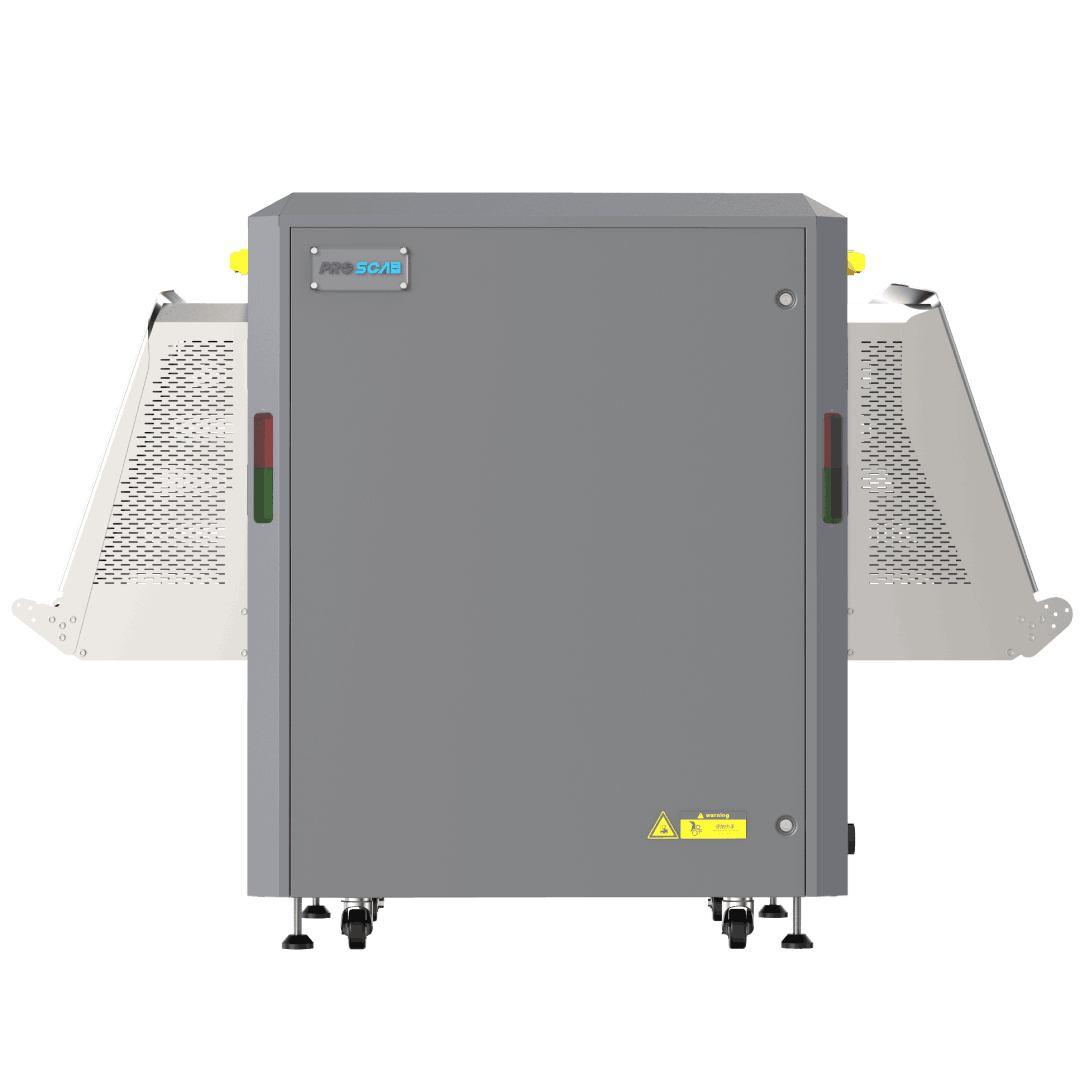

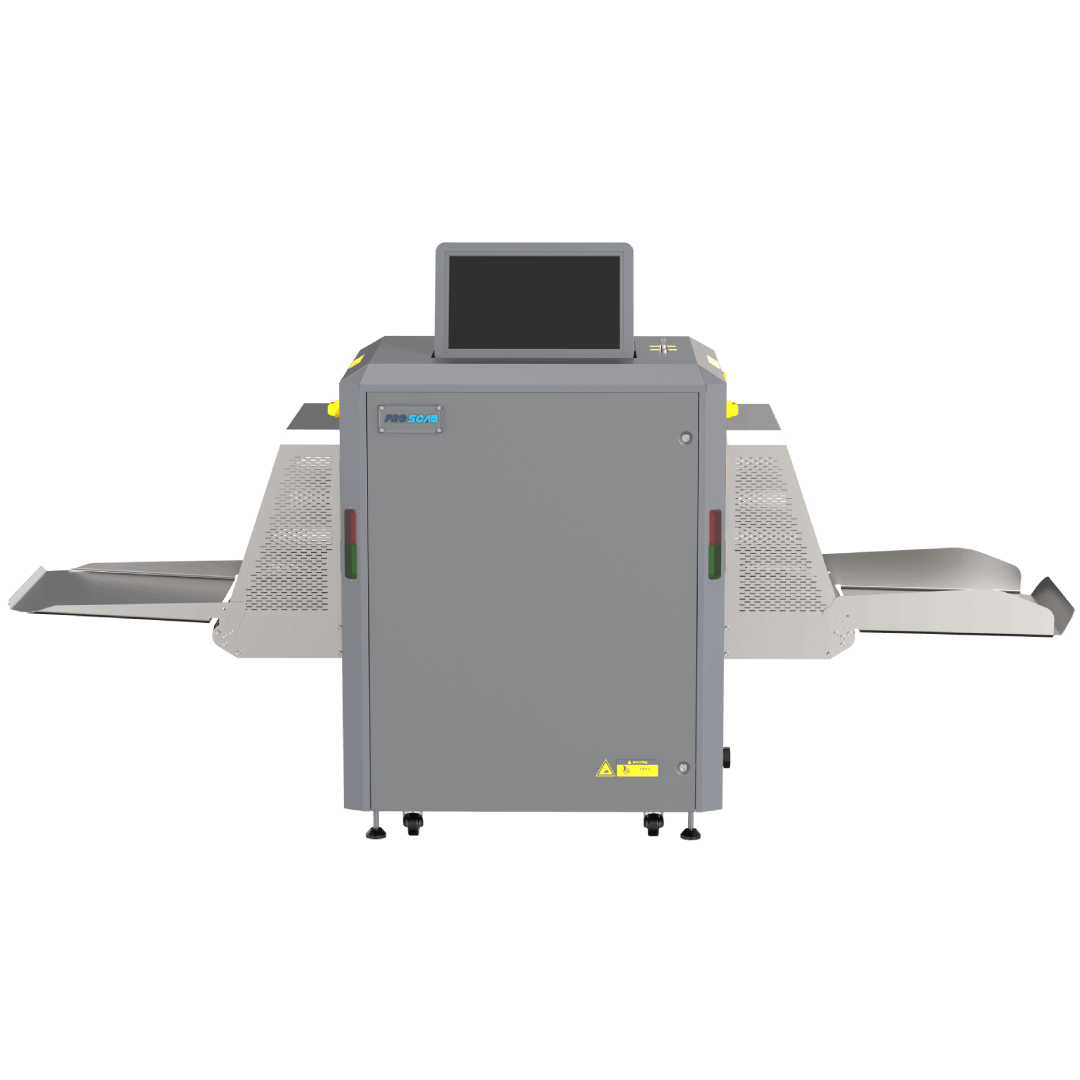

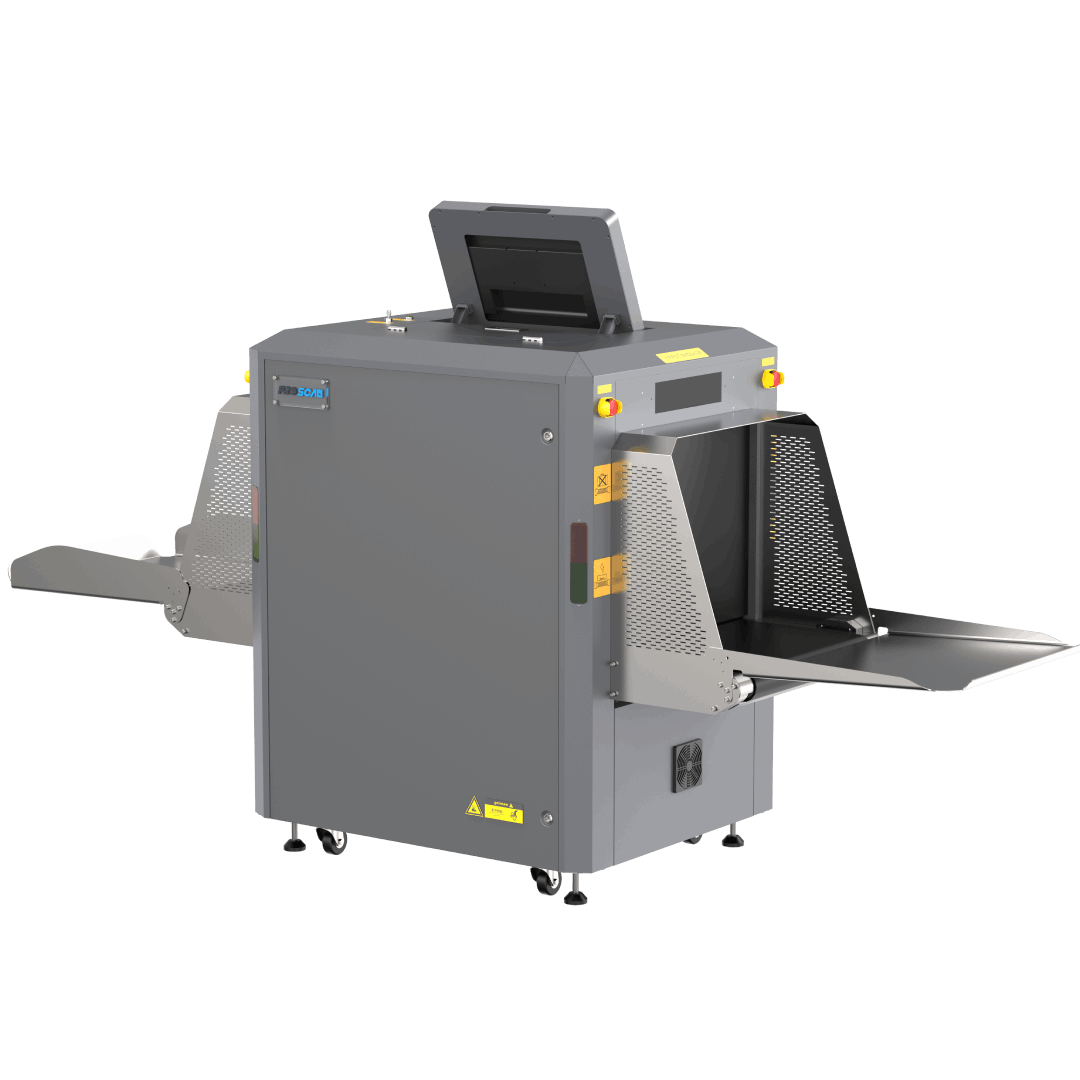

X-ray Security Machine XR3D – 6550A (140KW)

Dimensions:

• Channel Size: 500 mm (W) × 300 mm (H);
• Device Size: 1475 mm (L) × 784 mm (W) × 1100 mm (H);
• X-ray Source: 140 kV – 160 kV (0.5 mA – 1.25 mA);
• Penetration: 40 mm steel plate;
• Line Resolution: Awg38 (0.102 mm);
• Spatial Resolution: 1.0 mm (H) × 1.0 mm (V);
• Display: 21.5″ HD (1920 × 1080);
• Conveyor Speed: 0.22 m/s;
• Conveyor Belt Height: 660 mm (Belt to Ground);
• Power Consumption: 500 W;
• Power Supply: AC 220 V 50 Hz;
• Noise: < 55 dB (1 m away);
• Weight: 245 kg;
• Operating Temperature: 5 °C – 40 °C;
• Storage Temperature: –20 °C – 40 °C (0 – 90 % RH, no condensation);
• Sensor Type: 1/2.8″ Progressive Scan CMOS;
• Video Compression: H.265 / H.264 Mjpeg;
• Maximum Image Size: 1920 × 1080;
• Storage Duration: ≥ 30 days.
